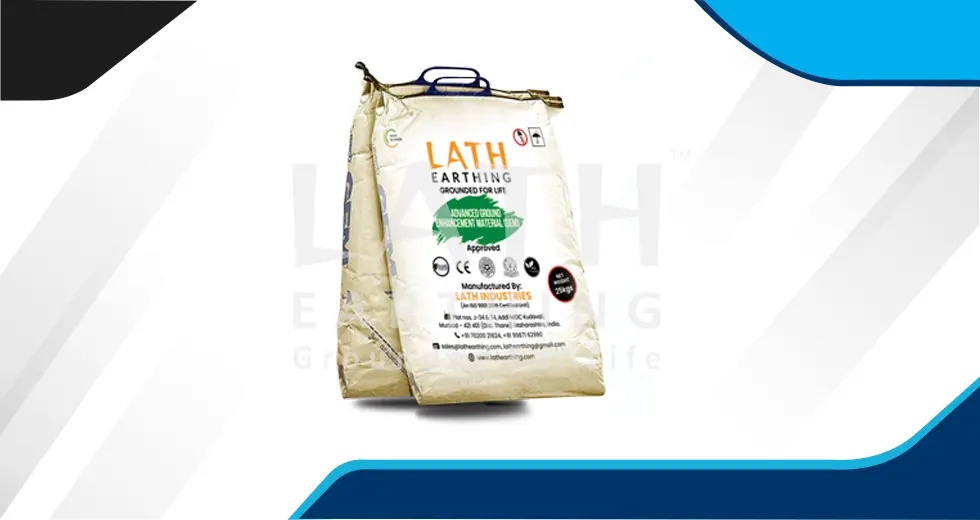

LATH Back fill Compound is a superior conductive material that improves earthing effectiveness by
improving conductivity of the earth electrode and ground contact area.

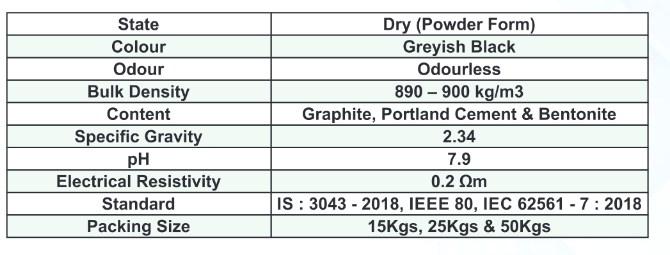

CHARACTERISTICS

• Highly Conductive, Improves Earth’s Absorbing Power
• Resistivity < 0.2 Qm
• Maintains Constant Earth Resistance with Time
• Non-Corrosive, Low Water Solubility but Highly Hygroscopic
• Improves Humidity Retention Capability
• Suitable for Installation in Dry Form or in Slurry Form
• Permanent and Maintenance Free
• Does not Dissolve, Decompose or Leach out with Time
• Does not Require Periodic Charging Treatment or Replacement
• Does not Pollute the Soil or Local Water Table
• Suitable for any Kind of Electrode & Soils of Different Resistivity
• Packed in Sealed, Moisture Proof Bags

• Leaching Test as per IEC 62561-7
• Sulphur Test as per IEC 62561-7 Clause 5.3.1 & 2. lSO:14689-1ISO:4689-3
• Determination of Resistivity as per IEC 62561-7 Clause -5.4.3, ASTM G-57-95
• Chemical Analysis as per IS: 1350 Clause 52. EN 12457-2
