PURE COPPER SOLID EARTH ROD

SALIENT FEATURES

  • 99.9% Pure Electrolytic Copper
  • Pure Copper being Malleable, will not Crack when Bent or Tear when Driving
  • Cold-Rolled Threads with Continuous, Unbroken Grain flows preserve Copper and are Stronger
    than Cut Threads (for Threaded Rods)
  • Maintenance Free and Highly Corrosion Resistant
  • Excellent Conductivity, Lowest Resistance Guaranteed
  • Highest Fault Current Capacity
  • Expensive but Longest Service Life
  • Easy & Fast Installation
  • Moisture Booster Chemical Bag provided for Low Earth Resistance
  • LATH Brand Name, Model Number, Diameter, Length are Laser Marked
  • Available along with Test cum Guarantee Certificate and Earth Pit Display Label

WHY LATH ?

  • 10 YEARS REPLACEMENT AND PERFORMANCE GUARANTEE*.
  • Have Minimum 99.9% Copper Purity
  • No Minus Tolerance on Diameter & Length of the Rod
  • Made using only ADOR or ESAB TlG Welding & its Consumables
  • All our Products are Laser Marked as a Testimonial of Performance & Guarantee.

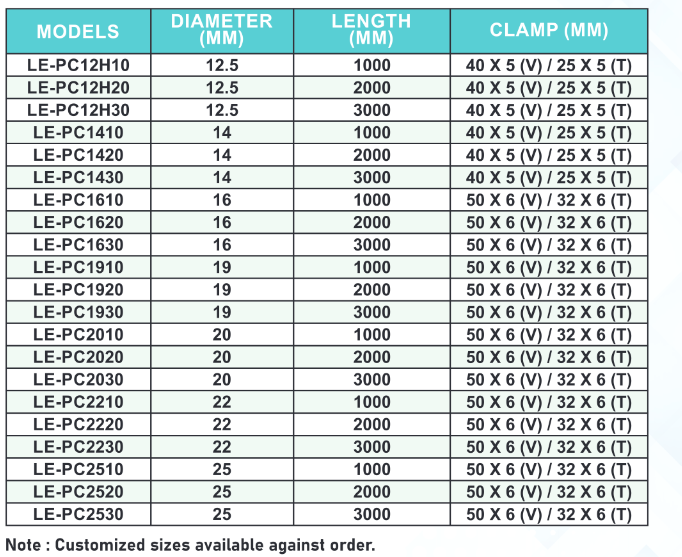

PRODUCT SPECIFICATION

TESTS PASSED

IN-HOUSE LABORATORY

  • Tensile Strength (>245 MPa)
  • Bend Test (No Cracks or Deformation)

Meets the requirement of IS : 191, 613 & 1897, BS EN 13601 : 2013
